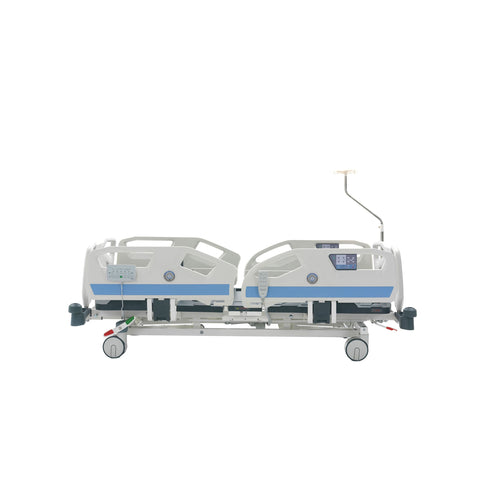

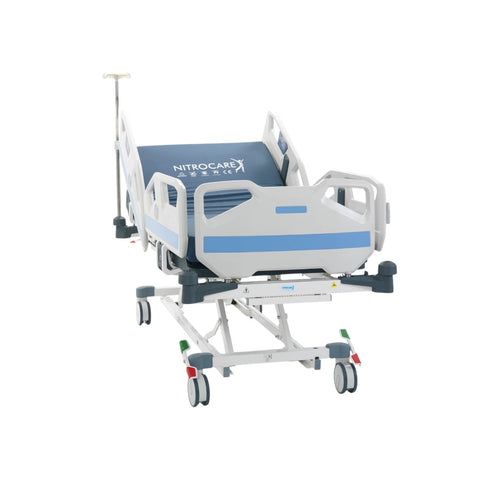

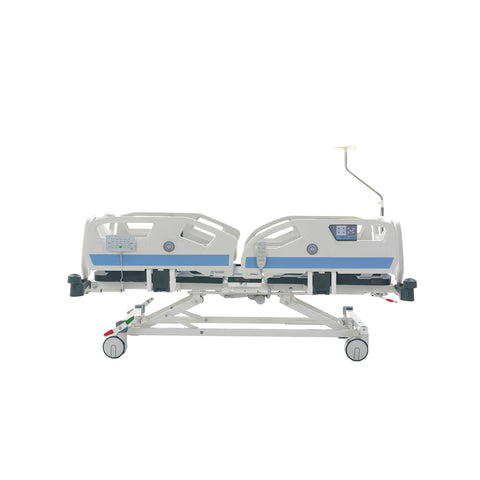

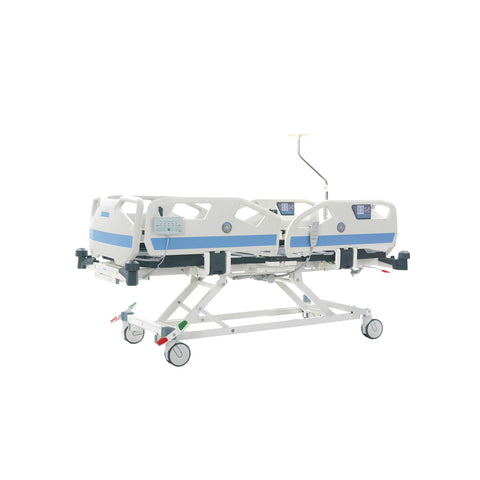

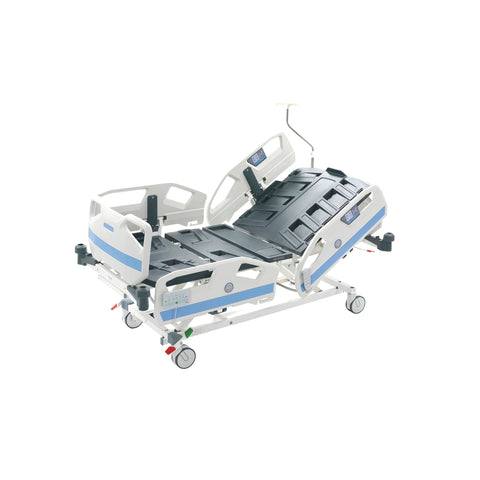

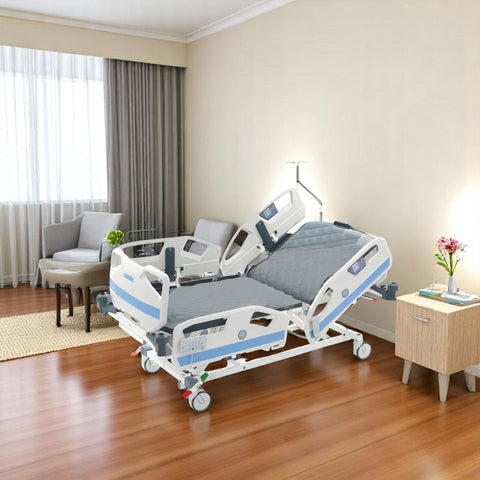

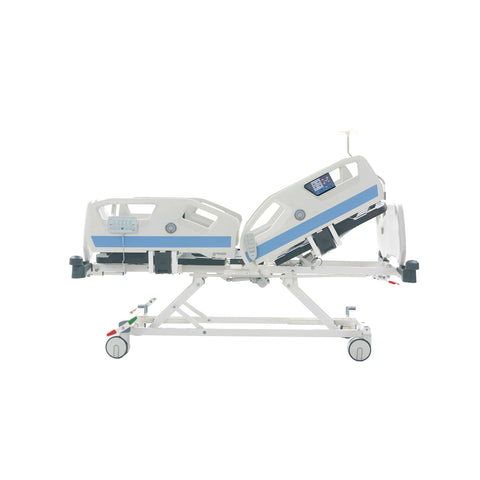

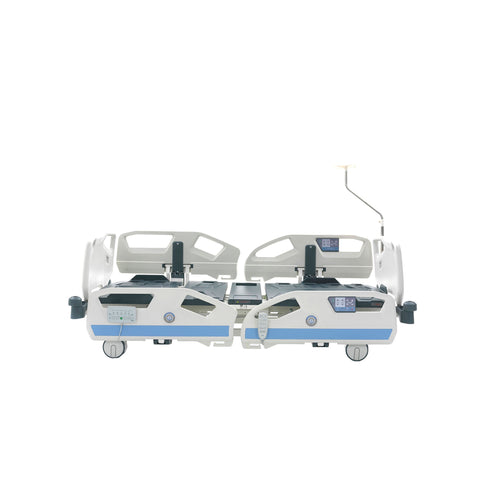

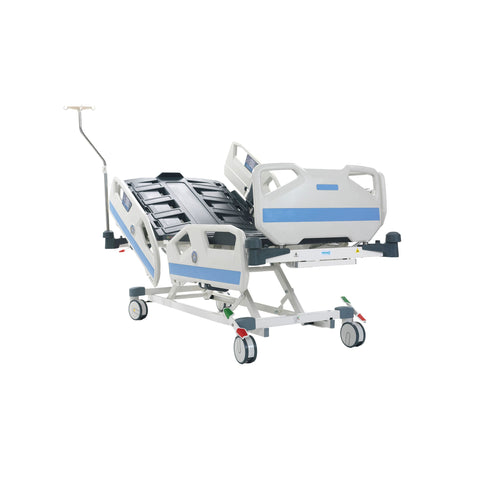

SANTE 8140 Full Electric ICU Low Bed for Critical Care

The SANTE 8140 Full Electric ICU Critical Care Low Bed is a fully electric, hospital-grade ICU bed designed for critical care environments. Equipped with four high-performance LINAK motors, it offers smooth adjustments for the backrest, leg rest, height, and Trendelenburg/reverse Trendelenburg positions (±16°). The bed includes electronic and manual CPR functions, auto-regression, and Fowler/vascular positioning to support both patient comfort and caregiver workflow. Height is adjustable from 14.6" to 31.5" (370–800 mm), with a weight capacity of 606 lbs (275 kg), making it ideal for high-risk patient care. The system complies with EN 60601-2-52 standards, ensuring medical-grade safety and reliability.

Constructed with a reinforced metal frame and ABS head/foot boards and side rails, this Hospital Bed includes antistatic 4.9" (125 mm) central locking castors, removable X-ray-compatible panels, and 3.5" (90 mm) corner bumpers for protection. Standard features include a battery backup, nurse lockable remote, IV and drainage hooks, and accessory slots. Optional upgrades such as viscoelastic foam mattresses, bed extension kits, and under-bed lighting allow full customization to meet critical care demands. The SANTE 8140 prioritizes safety, mobility, and clinical efficiency in intensive care settings.

Key Features:

4 LINAK Motors - For smooth, electric adjustment of all key positions, including Trendelenburg.
Safe & Compliant - With EN 60601-2-52 standards, electronic/manual CPR, and auto-regression.
Smart Controls - Via patient remote and optional nurse panel with lock function.
X-ray Compatible - Sections and integrated IV/drainage hooks for clinical convenience.
Durable & Mobile - With a strong steel frame, ABS components, antistatic castors, and battery backup.

Product Specifications

Motors:	LINAK LA27, 3500–6000 N, IPX4, DC.

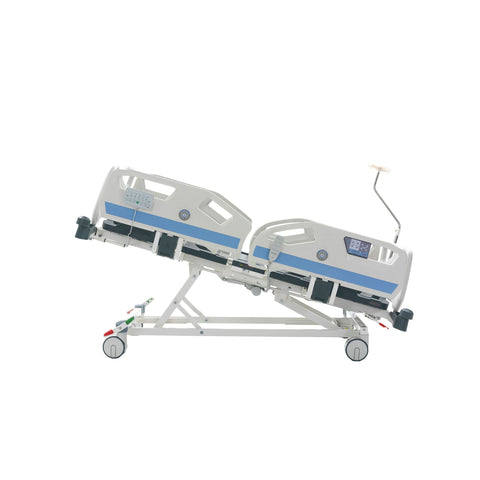

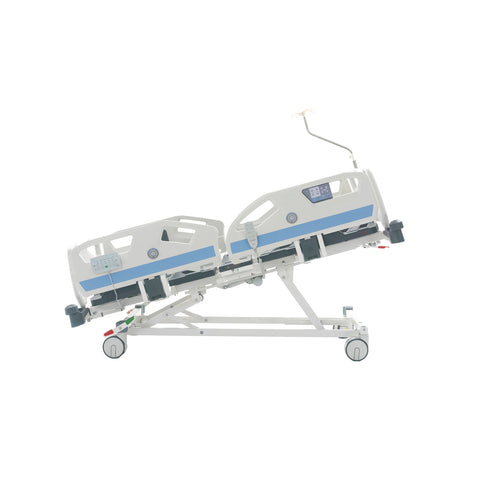

Movements:	Backrest, legrest, height, Trendelenburg & Reverse Trendelenburg (±16°), electronic/manual CPR.
Dimensions:	40.4" x 89.0" (1026 x 2260 mm), height adjustable from 14.6" to 31.5" (370–800 mm).
Materials:	ABS head/foot boards & side rails, 40 µm electrostatic powder coating.
Frame:	Metal box profile, 0.05–0.08" (1.2–2 mm) thickness
Weight Capacity:	606 lbs (275 kg).
Castors:	4.9" (125 mm) with linear brake system, central locking, 1 antistatic castor.
Protection:	3.5" (90 mm) corner bumpers, removable X-ray compatible head/foot boards, accessory slots.
Battery & IV Pole:	Included; IV pole with 4 hooks, 1.2 mm chromed steel.
Mattress:	Optional; 22/32 density foam with Viscoelastic options.
Control:	Patient remote; optional lockable nurse control panel.
Additional Features:	Manual knee adjustment, drainage hooks, hand grips, bed extension, under-bed light.

Nitrocare SANTE 8140 Full Electric ICU Critical Care Low Bed
